False Front Connectors

Find the Perfect False Front Connector

False Front Clips were developed to attach finished fronts to cabinet openings with limited usage, such as Sink Base Cabinets. Tenn-Tex Plastics offers several distinctive styles to fit various openings. They are equally useful for access panels on boats, spas or any kind of decorative panel that must remain removable. We offer The Simple Solutions to your False Front Applications.

Resources:

T-190 T-191 False Front Installation Instructions

Open PDF

T-194 T-195 False Front Installation Instructions

Open PDF

T-309 False Front Installation Instructions

Open PDF

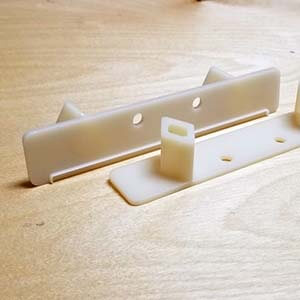

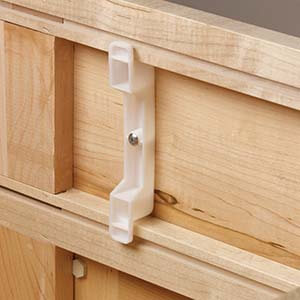

T-900 False Front Installation Instructions

Open PDF

False Front Clips

Open PDF

Parts Index

Open PDF

FAQs:

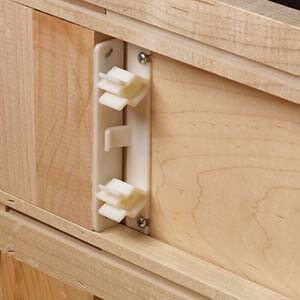

Q: I really like the action of the T-194 and T-195 false front clips. Where do I install the clip on the back of the false front?

A: Please consult the installation drawing on our website under T-194/T-195 False Front Installation Instructions.

The locations are as follows: bottom screw = bottom overlay PLUS 8.00 mm (0.315) AND side overlay PLUS 18.50 mm (0.728) screw center to center = 94 mm (3.7)

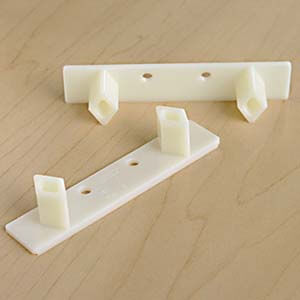

Q: How do I install the T-194 and T-195 false front clip series?

A: The T-194 is installed flush against the side panel or the vertical rail, resting on the bottom stretcher rail. The T-195 screw locations on the back of the false front are: Bottom overlay plus 7 mm (9/32) and Side overlay plus 18.5 mm (23/32)

Videos:

Tenn-Tex False Fronts

View Transcript
