Inset Brackets

Find the Perfect Bracket

Kitchen Buyers are now demanding more from their new kitchen investments. They are looking for smoother drawer systems, more storage space and a high-end furniture appeal with inset drawers and doors. Tenn-Tex Plastics has developed our Inset Bracket program that will allow you to meet your customers’ demands. This revolutionary bracket system provides drawer front adjustments for a perfect alignment, regardless of the drawer front thickness or profile. Our Inset Brackets will eliminate the need to put wood blocks behind the face-frame. At Tenn-Tex Plastics, we offer you Innovative Technology for Inset Cabinet Applications.


Bracket Solutions Brochure

Open PDF

Bracket Solutions Worksheet

Open PDF

Inset Bracket Catalog Section

Open PDF

Inset Bracket Installation Instructions

Open PDF

Parts Index

Open PDF


Q: For Inset applications I have to block out the side panel to accommodate the undermount slide behind the face frame. Field Adjustments are nearly impossible. Is there an easier way?

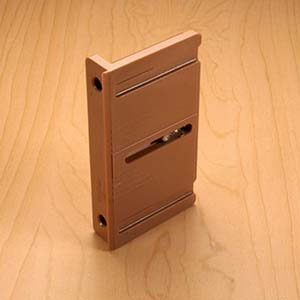

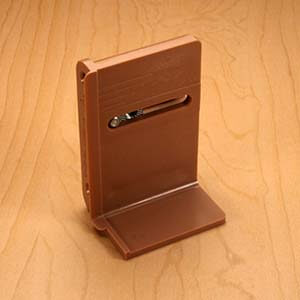

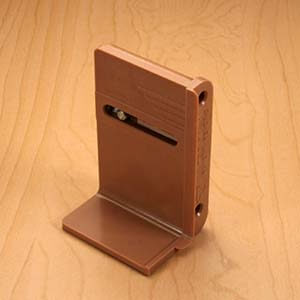

A: We recommend our T-349-A, T-350-A / T-350-01-A or T-351-A series brackets which allow you to easily install the slide behind the face frame. Depth adjustment is quick with a turn of the screw driver. You will save a lot of time and frustration. Brackets are available in bulk or in convenient poly bags.

Q: My drawer slide is too long to fit onto the standard rear bracket that I also use for overlay designs. What can I do? I don’t want to install a shorter slide.

A: You can use the specially designed C-280 adjustable rear bracket. It is available in screw-on or doweled versions.

Q: The Inset brackets are molded from a plastic polymer. Are they strong enough to hold fully loaded drawers in place?

A: We use a glass reinforced polycarbonate polymer, known and tested for its superior strength. It will give you top performance for the life of the cabinet.

Q: What is the difference between the T-349 and T-350 inset bracket?

A: The T-349 is a reversible version without a lower lip, ideal for cabinets with flush bottoms. The T-350 has side and bottom positioning lips that align the bracket in the corner of vertical face frame and stretcher rail. Both are fastened with supplied self-tapping washer head screws for superior strength.

Q: I am building cabinets with inset doors. The doors over-closes and I need a door stop.

A: We suggest you use our T-230-01 Retainer Clip which you can screw to the top rail.
